T3 GPS System
The T3 Tracker System (Tiny Telematics Tracker) is a simplified and scaled down version of our RTx/GPS system. Even though the T3 system is a lower cost "Buy and Fly" tracker system, it still uses the same proven core components as its big brother RTx
The T3 system relies on a Bluetooth ready Android mobile device or Windows PC and uses any NMEA/Serial Bluetooth data stream capable app to provide Lat/Lon coordinates. If your mobile device has integral GPS capability it can also assist with direct navigation to the landing coordinates, even without mobile network services.
Android apps include for the T3 include:
Blue GPS / Rocket Track / Rocket Locator / GPS Connector
Windows PC apps include:
uCenter / VisualGPS

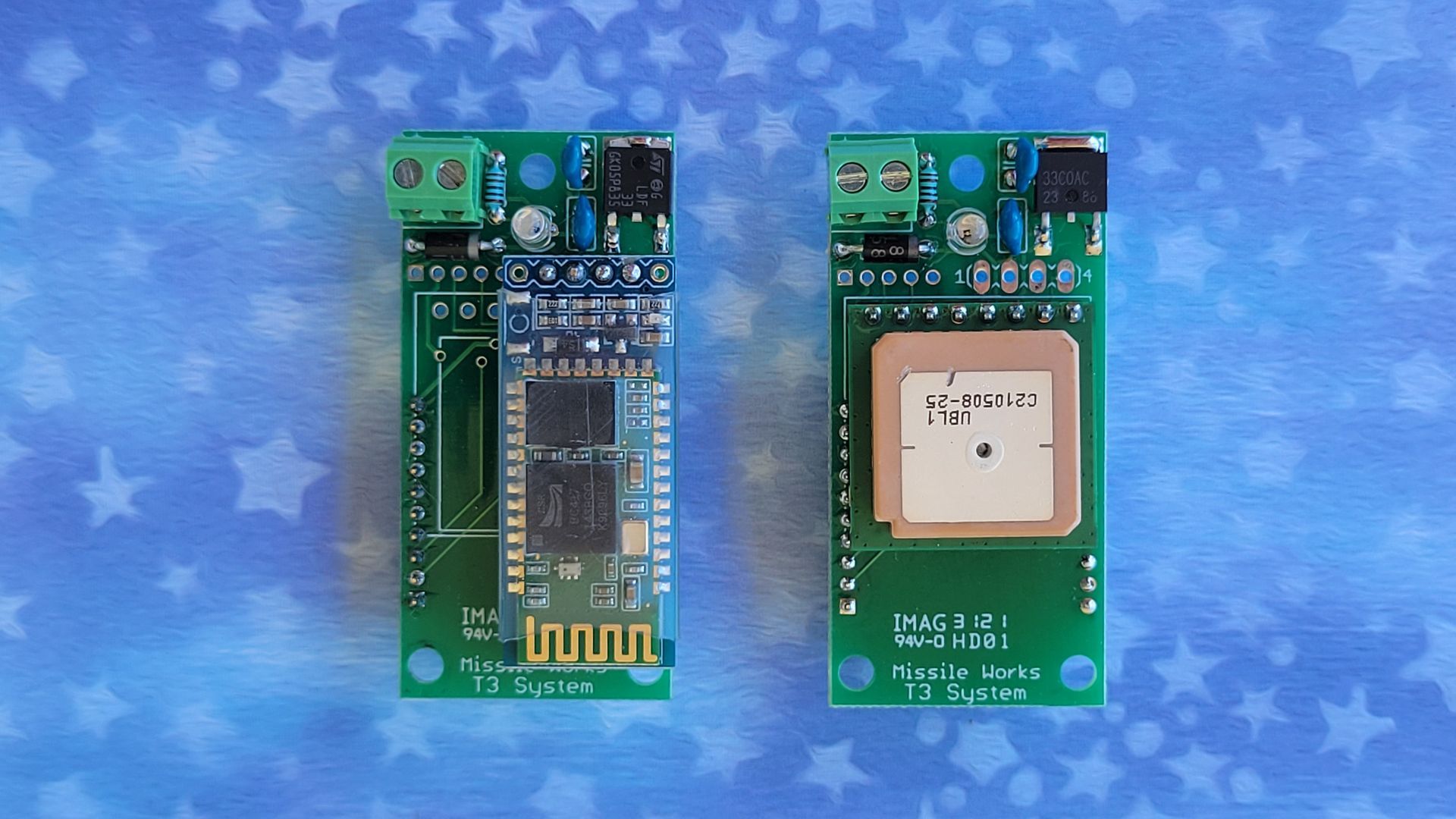

Your Linx radios come pre-configured for private networking and interference-free operation as we manage all radio network ID's just like we do for our RTx systems. All T3 systems include two boards (GPS Rocket transmitter and Base receiver) and also includes an articulating 1/2 wave antenna for your Base board.
The Rocket transmitter board can be ordered with an integral 1/4 wave wire-whip or an RPSMA connector for use with an externally mounted antenna (purchased separately). Additional Rocket transmitter boards can also be purchased separately for a multi-rocket T3 System.
(Please note: multi-transmitter systems can only operate with 1 single transmitter powered up at any given time).
Specifications
GPS Operational Range Altitude: 50,000m / 160,042 ft
Velocity: 500 m/sec / 1640 ft/sec
Radio Operational Ranges 902 to 928 MHZ
Range up to 8 miles (2.1dB dipole)
Operational Voltage 3.5 volts to 7.4V (1S Lipo optimal)
Operational Current @3.7V ~175ma (Rocket) / ~70ma (base)
Dimensions 1" x 2.075" / 25.4mm x 52.7mm
Weight (Rocket Board) 0.68 oz / 19.5 grams
Radio Network Addressing Linx DSN Mode (Production models)
XBee Pro 900HP Preamble ID: 5 (Legacy models)
Net Address: 0 thru 7FFF
